Introduction
This page gives a brief example introducing the earthcarekit module. First, make sure to complete the setup.
Afterwards, begin by importing the module:
Download EarthCARE Data
To download your first EarthCARE product run this:
See output ...
#======================================================================#
# EarthCARE Download Tool #
# earthcarekit 0.2.2 #
#======================================================================#
# Settings
# - is_download=True
# - is_overwrite=False
# - is_unzip=True
# - is_delete=True
# - is_create_subdirs=True
# - is_log=False
# - is_debug=False
# - is_export_results=False
# - idx_selected_input=None
# - config_filepath=<~/.config/earthcarekit/default_config.toml>
# - data_dirpath=<~/path_to_data>
+----------------------------------------------------------------------+
| STEP 1/2 - Search products 2025-08-15 14:06:01 |
+----------------------------------------------------------------------+
*[1/1] Search request: ATL_EBD_2A, frame=B, orbits=[5976]
[1/1] Files found in collection 'EarthCAREL2Validated': 1
List of files found (total number 1):
[1] ECA_EXAG_ATL_EBD_2A_20250617T002721Z_20250617T024837Z_05976B
Note: To export this list use the option --export_results
Note: To select only one specific file use the option -i/--select_file_at_index
+----------------------------------------------------------------------+
| STEP 2/2 - Download products 2025-08-15 14:06:01 |
+----------------------------------------------------------------------+
*[1/1] Starting: ECA_EXAG_ATL_EBD_2A_20250617T002721Z_20250617T024837Z_05976B
[1/1] Authenticate at dissemination service: ec-pdgs-dissemination2.eo.esa.int
[1/1] Download completed (00:00:29 - 2.58 MB/s - 76.08/76.08 MB)
[1/1] File extracted and ZIP-file deleted. (see <~/path_to_data/level2a/ATL_EBD_2A/2025/06/17/ECA_EXAG_ATL_EBD_2A_20250617T002721Z_20250617T024837Z_05976B>)
+----------------------------------------------------------------------+
| EXECUTION SUMMARY 2025-08-15 14:06:09 |
+----------------------------------------------------------------------+
| Time taken 00:00:09 |
| API search requests 1 |
| Remote files found 1 |
| Files downloaded 1 (17.07 MB at ~3.49 MB/s) |
| Files unzipped 1 |
| Errors occured 0 |
+----------------------------------------------------------------------+
This will download the latest ATLID extinction backscatter, and depolarization product (A-EBD), specifically from the EarthCARE frame B of orbit 5976. You can monitor the download progress from the output log messages.
Search Local Files
Now search the file in your local data directory:
dataframe = eck.search_product(file_type="ATL_EBD_2A", orbit_and_frame="5976B")
# View the search results
print(dataframe)
# Or, if in a Jupyter notebook, show in tabular format by using
display(dataframe)
See output ...
| mission_id | agency | latency | baseline | file_type | start_sensing_time | start_processing_time | orbit_number | frame_id | orbit_and_frame | name | filepath | hdr_filepath | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | ECA | E | X | AG | ATL_EBD_2A | 2025-06-17 00:27:21 | 2025-06-17 02:48:37 | 5976 | B | 05976B | ECA_EXAG_ATL_EBD_2A_... | ~/path_to_data/... | ~/path_to_data/... |
Open/Read a Dataset
Now you can get the file path from the resulting ProductDataFrame:
See output ...
To open a dataset use the eck.read_product which is based on xarray.open_dataset. To prevent open file handles, memory leaks, and locked dataset files it is best practice to open files using a with statement:
See output ...
<xarray.Dataset> Size: 234MB
Dimensions: (
along_track: 4946,
vertical: 242,
layer: 25,
n_state: 351)
Dimensions without coordinates: along_track, vertical, layer, n_state
Data variables: (12/74)
filename <U60 240B ...
file_type <U10 40B ...
frame_id <U1 4B 'B'
orbit_number uint32 4B ...
orbit_and_frame <U6 24B '...
baseline <U2 8B 'AG'
... ...
lidar_ratio_355nm_low_resolution_error (along_track, vertical) float32 5MB ...
retrieved_state_vector (along_track, n_state) float32 7MB ...
state_vector_prior (along_track, n_state) float32 7MB ...
state_vector_prior_error (along_track, n_state) float32 7MB ...
final_chi_square (along_track) float32 20kB ...
initial_chi_square (along_track) float32 20kB ...
Create your first plots
earthcarekit provides a set of figure objects:
MapFigure- for plotting data on a map (e.g., the satellite's track or geolocated swath data from MSI)CurtainFigure- for plotting time series of vertical profile data (i.e., 2D time/height plots of ATLID and CPR "curtain" data)ProfileFigure- for plotting single or mean vertical profiles as signal/height line plotsSwathFigure- for plotting time series of across-track swath data (i.e., 2D time/swath plot)LineFigure- for plotting time series of 1D along-track data (i.e., tropopause height, latitude, data quality flags, ...)
Each of these implements (among others) two methods:
ecplot- for handeling EarthCARE datasetsplot- for manual data input (profiles, values, time, height, etc.)
Plot a track on a map

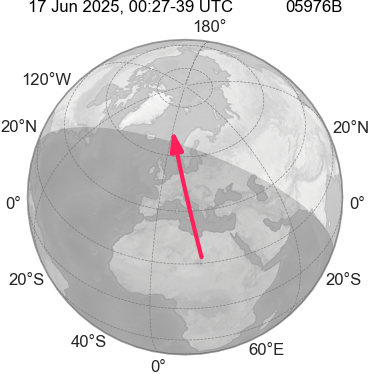

To get a general sense of the satellites track, you may start by plotting a simple map:
with eck.read_product(filepath) as dataset:
map_figure = eck.MapFigure().ecplot(dataset)
# Save the image
eck.save_plot(map_figure, filepath="simple_map.png")
Create simple curtain plots

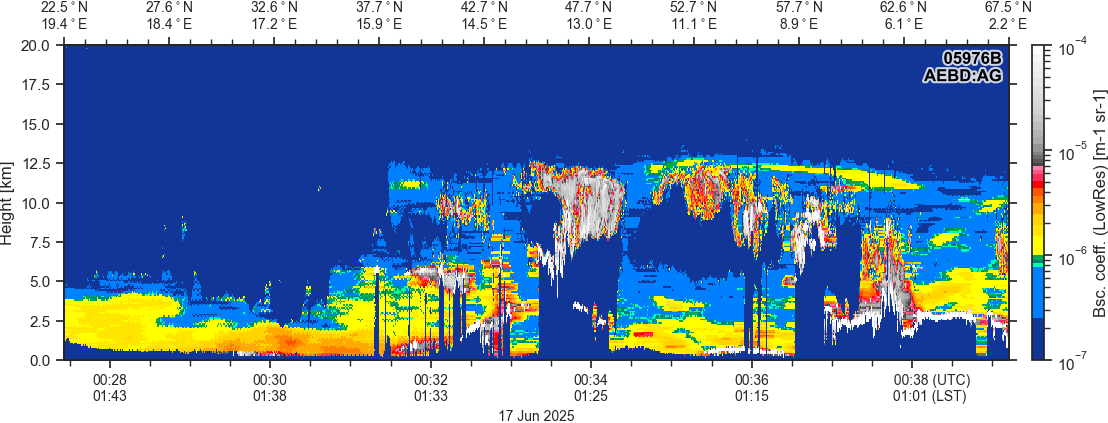

To make a time/height or curtain plot of the vertically resolved atmospheric profile data stored in the current A-EBD dataset, you can use a CurtainFigure object:
with eck.read_product(filepath) as dataset:
curtain_figure = eck.CurtainFigure()
curtain_figure = curtain_figure.ecplot(
dataset,
var="particle_backscatter_coefficient_355nm_low_resolution",
height_range=(0, 20e3), # Show only data within 20km height
)
# Save the image
eck.save_plot(curtain_figure, filepath="simple_curtain.png")

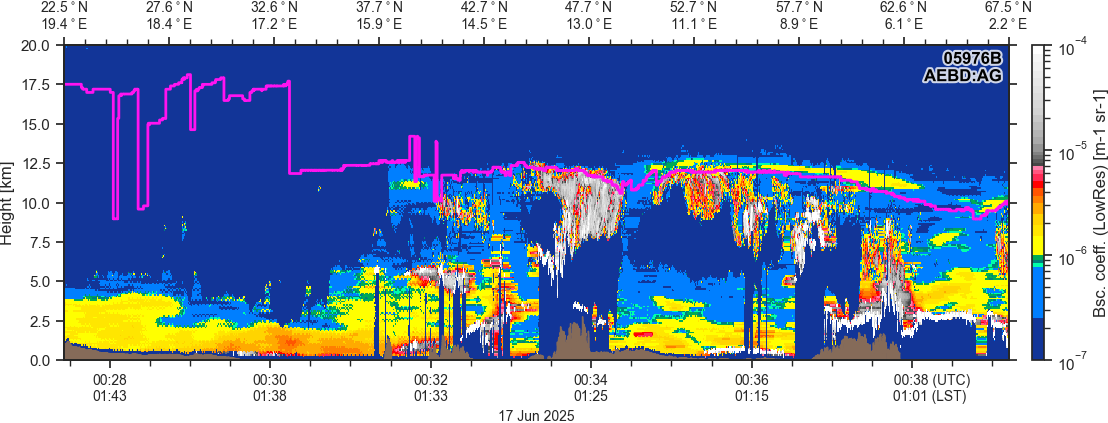

You can enhance the plot with overlays of elevation and tropopause height from datasets that store this information (in this case, A-EBD already contains both):
with eck.read_product(filepath) as dataset:
curtain_figure = eck.CurtainFigure().ecplot(
dataset,
var="particle_backscatter_coefficient_355nm_low_resolution",
height_range=(0, 20e3), # Show only data within 20km height
)
curtain_figure.ecplot_elevation(dataset) # NEW
curtain_figure.ecplot_tropopause(dataset) # NEW
# Save the image
eck.save_plot(curtain_figure, filepath="curtain_with_elevation_and_tropopause.png")
Select along-track data and plot profiles
Select by time
time_range = ("2025-06-17T00:29", "2025-06-17T00:30:30")
with eck.read_product(filepath) as dataset:
dataset_filtered = eck.filter_time(ds=dataset, time_range=time_range)

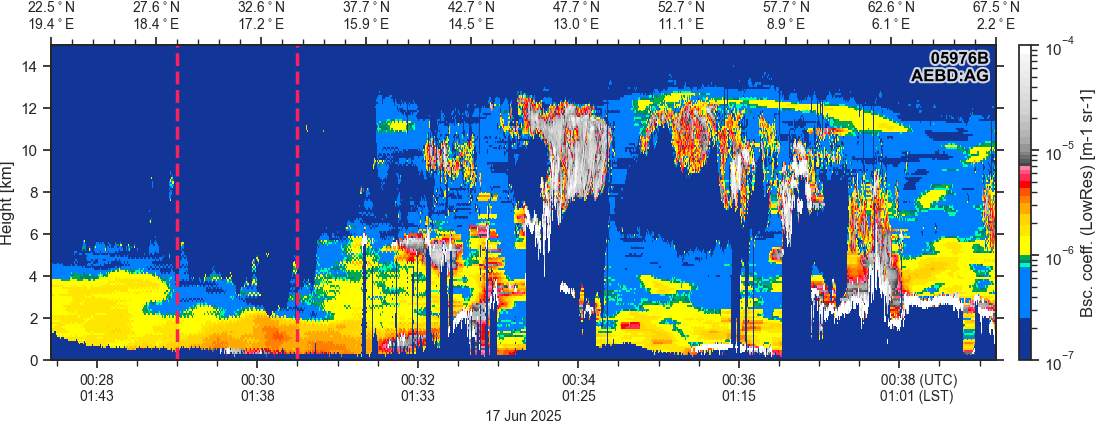

# Plot a curtain of the whole EarthCARE frame with the time_range marked
curtain_figure = eck.CurtainFigure().ecplot(
ds=dataset,
var="particle_backscatter_coefficient_355nm_low_resolution",
height_range=(0, 15e3), # Show only data within 15km height
selection_time_range=time_range,
)

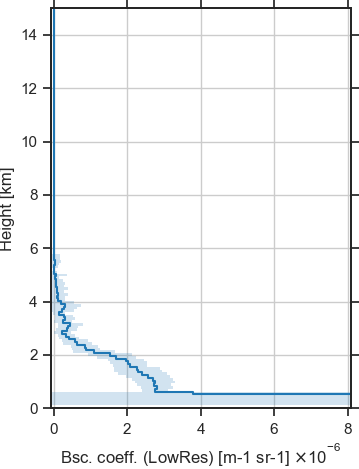

# Plot the mean profile of the filtered data (with STD error ribbon)
profile_figure = eck.ProfileFigure().ecplot(
ds=dataset_filtered, # Use the filtered dataset here
var="particle_backscatter_coefficient_355nm_low_resolution",
height_range=(0, 15e3), # Show only data within 15km height
# value_range=(0, 1e-8), # You may adjust the x-axis plotting range
)
# Save the images
eck.save_plot(curtain_figure, filepath="curtain_selection_time_range.png")
eck.save_plot(profile_figure, filepath="profile_selection_time_range.png")
Select by radius
site = eck.GroundSite(
name="TROPOS",
latitude=51.352757,
longitude=12.43392,
altitude=125,
)
with eck.read_product(filepath) as dataset:
dataset_filtered = eck.filter_radius(
ds=dataset,
radius_km=100,
site=site,
closest=True, # Since we are using a A-EBD dataset, we should only select the closest profile
)
# Plot a curtain of the whole EarthCARE frame with the time_range marked
curtain_figure = eck.CurtainFigure().ecplot(
ds=dataset,
var="particle_backscatter_coefficient_355nm_low_resolution",
height_range=(0, 15e3), # Show only data within 15km height
site=site,
)
display(dataset_filtered)

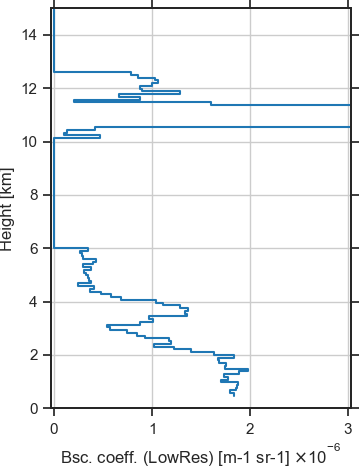

# Plot the mean profile of the filtered data (with STD error ribbon)
profile_figure = eck.ProfileFigure().ecplot(
ds=dataset_filtered, # Use the filtered dataset here
var="particle_backscatter_coefficient_355nm_low_resolution",
height_range=(0, 15e3), # Show only data within 15km height
value_range=(0, 3e-6), # You may adjust the x-axis plotting range
)
# Save the images
eck.save_plot(curtain_figure, filepath="curtain_selection_radius_range.png")
eck.save_plot(profile_figure, filepath="profile_selection_radius_range.png")
